KEXIN 5.12 KW
Original price was: ₨ 230,000.₨ 215,000Current price is: ₨ 215,000.
High-Capacity Lithium LFP Battery System (51.2V 100Ah)
Power your commercial or large residential solar system with our high-capacity 51.2V lithium LFP battery, offering 5120Wh (5.12kWh) nominal energy. Featuring safe lithium iron phosphate chemistry, intelligent BMS with comprehensive protection, and compatibility with major inverter brands including Pylontech, Growatt, Victron, and Schneider. With over 6000 cycles, 90% depth of discharge, and flexible floor or wall-mounted installation options, this battery provides reliable energy storage with IP20/IP65 protection levels and certification to UL9540A and IEC62619 standards.
High-Capacity Lithium LFP Battery System (51.2V 100Ah) – Complete Specifications
5.12kWh Lithium Iron Phosphate battery system with wide inverter compatibility for commercial and residential energy storage
Key Features & Important Notes:
- High Energy Capacity: 5.12kWh nominal energy with 100Ah capacity for extended backup power
- Safe LFP Chemistry: Lithium Iron Phosphate cells for enhanced safety and thermal stability
- Wide Inverter Compatibility: Works with Pylontech, Growatt, Victron, Schneider, SMA, GoodWe and other major brands
- Long Cycle Life: Over 6000 cycles with 90% depth of discharge for years of reliable operation
- High Power Capability: 1C maximum charge/discharge rate for high power applications
- Flexible Installation: Floor or wall-mounted options for versatile installation scenarios
- Dual Protection Rating: IP20 and IP65 options for different environmental requirements
- Comprehensive Safety: Overcharge, overdischarge, overtemperature, and short circuit protection
- Wide Temperature Range: Charging 0-55°C, discharging -20-55°C for various climate conditions
- Advanced Communication: CAN, RS485, and optional Bluetooth/WiFi for monitoring and control
- Industry Certifications: UL9540A, IEC62619, UN38.3, RoHS compliance for safety and reliability

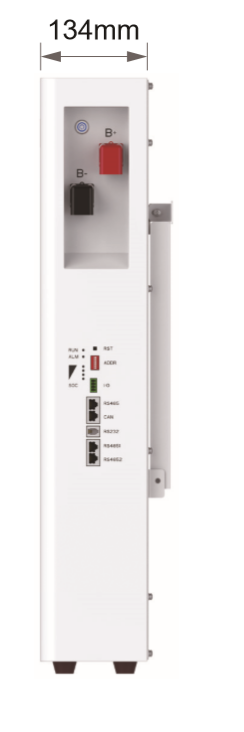

- Compact Design: Efficient form factor (720×460×134mm) with 45kg weight for easy handling
| Parameter / Category | Specifications |
|---|---|
| Battery Specifications | |
| Battery Type | LFP (Lithium Iron Phosphate) |
| Nominal Battery Energy (kWh) | 5.12 kWh |
| Operating Voltage (V) | 44.8 ~ 57.6 V |
| Nominal Voltage (V) | 51.2 V |
| Nominal Power (kWh) | 5.12 kWh |
| Nominal Capacity (Ah) | 100 Ah |
| Recommend Charge/Discharge C Rate (C) | 0.5 C |
| Max Charge/Discharge C Rate | 1C @ 60S |
| Recommend Charge/Discharge Current (A) | 50 A |
| Recommend Depth of Discharge (DOD) (%) | 90% |
| Physical Specifications | |
| Net Weight (kg) | 45 ± 0.5 kg |
| Dimension [H × W × D] (mm) | 720 × 460 × 134 mm |
| Environmental Specifications | |
| Charging Temperature Range (°C) | 0 °C ~ 55 °C |
| Discharging Temperature Range (°C) | -20 °C ~ 55 °C |
| Communication & Features | |
| Communication | CAN / RS485 / Bluetooth and WiFi (Optional) |
| Cycle Life | > 6000 cycles (Cumulative cycling capacity) |
| Protection Level | IP20 / IP65 |
| Protection Features | Overcharge / Overdischarge / Overtemperature / Short Circuit |
| Installation | Floor or Wall-mounted |
| Certification & Compatibility | |
| Certification & Safety Standard | UN38.3, ROHS, UL9540A, IEC62619 |
| Compatible Inverters | PYLON, Growatt, Victron, Schneider, Luxpowertek, Sorotec, SMA, GoodWe, STUDER, MUST, GINLONG, Serergy, TBB, MEGAREVO, etc. |
